100SSTX1K3

BARDEN (SCHAEFFLER)
100SSTX1K3

Spindle & Precision Machine Tool Angular Contact Bearing - 10 mm Bore, 26 mm OD, 0.4688 in Width, Double Shielded
MI ITEM #00103071
MFR #100SSTX1K3
Quote Required
Home
Bearings
Ball Bearings
BARDEN (SCHAEFFLER) 100SSTX1K3
Tap image to view

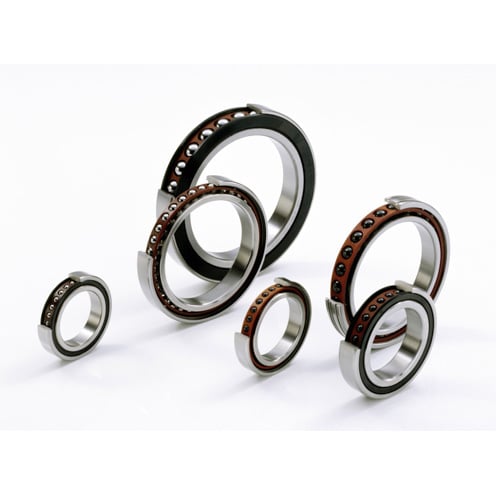

Photo may not represent actual item. Refer to name and product specs for all details.

BARDEN (SCHAEFFLER)
100SSTX1K3

Spindle & Precision Machine Tool Angular Contact Bearing - 10 mm Bore, 26 mm OD, 0.4688 in Width, Double Shielded
MI ITEM #00103071
MFR #100SSTX1K3
Availability:
In Stock
Factory Order
Shipping
Shipping time may vary. Motion rep will advise.
This product requires a Quote Request
Quote Required

BARDEN (SCHAEFFLER)
100SSTX1K3

Spindle & Precision Machine Tool Angular Contact Bearing - 10 mm Bore, 26 mm OD, 0.4688 in Width, Double Shielded
Quote Required

Overview

Mfr description
100SSTX1K3 G-74

Specifications

  • Bore Type
    Straight
  • Bore Diameter
  • Outside Diameter
  • Overall Width
  • Closure Type
    Double Shielded
  • Snap Ring Included
    Without Snap Ring
  • Internal Clearance
    C0
  • Precision Rating
    ABEC 7 (ISO Class 4)
  • Operating Temperature Range
    Maximum of +300 °F
  • Bearing Type
    Spindle & Precision Machine Tool Angular Contact Bearings
  • Radial Dynamic Load Capacity
    1018 lbf
  • Radial Static Load Capacity
    384 lbf
  • Bearing Material
    Steel
  • Max Rpm
    85000 rpm
  • Cage Material
    Aluminum, Phenolic Resin
  • Finish Coating
    Uncoated
  • Fillet Radius
    0.3 mm
  • Series
    100
  • Standards Met
    SAE 52100
  • UPC_NO
    4054364966171
  • Description
    100SSTX1K3 G-74
  • Weight
    0.07 lbs
  • Product Type
    Spindle & Precision Machine Tool Angular Contact Bearings
